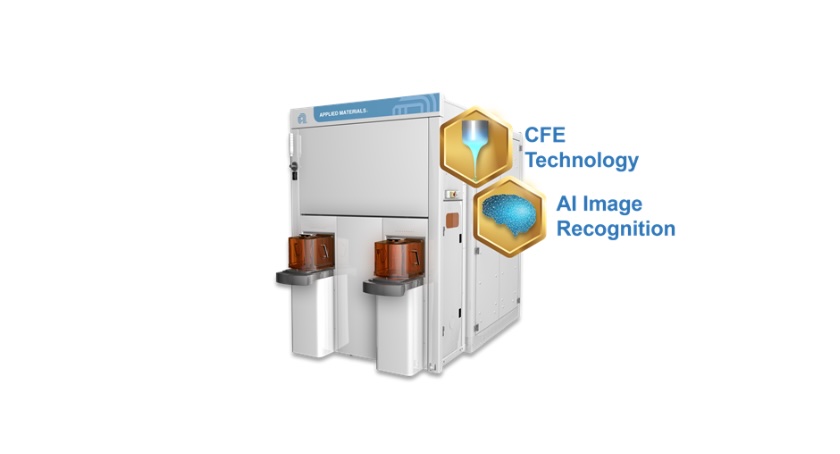

Applied Materials, Inc. introduced a new defect review system to help leading semiconductor manufacturers continue pushing the limits of chip scaling. The company’s SEMVision H20 system combines the industry’s most sensitive electron beam (eBeam) technology with advanced AI image recognition to enable better and faster analysis of buried nanoscale defects in the world’s most advanced chips. eBeam imaging has long been an important tool for examining defects that are too small to be seen with ...
